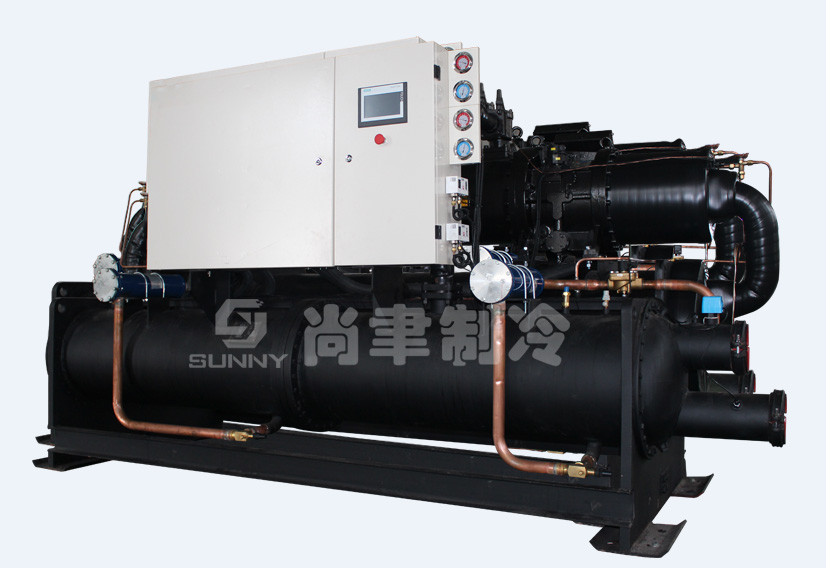

制冷量：300KW～2000KW 出水温度：7℃～-15℃
产品选项 1.盐水蒸发器 2.无级能量调节 3.全热回收/部分热回收 4.水泵/冷却塔控制 5.特殊电压 6.远程通讯接口
产品特征 1.采用国际知名品牌双螺杆压缩机，享有高效、低噪、低磨耗和使用寿命长等特点。 2.采用4段式能量调节或0%-100%无段式自动调节。 3.采用德国西门子PLC可编程控制器，液晶触摸屏，中英文人机界面。 4.完备的故障保护：高低压保护、排气保护、油位保护、水流保护、逆缺项保护、冷冻水防冻保护、冷却水过高保护等等。 5.高效节能，比干式同类产品能耗降低10%-15%。
产品规格 制冷剂类型：R22/R407C 蒸发器/冷凝器最大水压：1.0MPa 蒸发器：水侧污垢系数0.018m2·℃/KW 冷凝器：水侧污垢系数0.044m2·℃/KW 电源制式：380V/3相/50Hz 允许电压波动：±5% 允许频率波动：±2%
电子膨胀阀 电子膨胀阀具有比例积分式调节的卓越技术，允许更好地控制空调机组降低运行成本。电子膨胀阀电机与阀何为一体，陶瓷材料的阀板和阀口部件耐磨损，可靠性高，寿命极长。电子膨胀阀，有效地提高了蒸发温度，同时降低了吸气过热度，使机组能效比大大提高。
引射回油 满液式机组采用引射回油技术，其体积小，结构简单，运动部件少，不易损坏，以少许动力即可达到适当回油效果。
可选用环保型R407C、R134A或R410A冷媒等。 由于技术改进，外形尺寸很可能有所变更，外形尺寸仅供参考，敬请随时索取安装尺寸图。
满液式螺杆冷水机组技术参数（单压缩机）
| SWF- | | 机型 Type | 335S | 355S | 385S | 420S | 460S | 550S | 580S | 名义制冷量
Nominal cooling capacity | kW | 335.0 | 355.0 | 385.0 | 420.0 | 460.0 | 550.0 | 580.0 | | 104kcal/h | 28.8 | 30.5 | 33.1 | 36.1 | 39.6 | 47.3 | 49.9 | | 运行控制方式 Run control | PLC可编程控制器全自动控制 Use PLC microcomputer control | | 电源 Power Supply | 380V/3N/50HZ | | 启动类型 Startup type | Y-△ | | 压缩机Compressor | 型式 Type | 5:6非对称半封闭双螺杆压缩机 Semi-closed 5:6 asymmetric twin-screw compressor | 输入功率(kW)
Refrigeration input power | 62.0 | 65.0 | 71.5 | 78.0 | 86.5 | 100.5 | 106.0 | | 额定电流(A) Rated Current | 104.0 | 109.0 | 120.0 | 131.0 | 146.0 | 169.0 | 178.5 | | 油加热器(W) Oil heater | 300.0 | | 能量调节 Energy regulation | 0-25%-50%-75%-100% | | 蒸发器Evaporator | 型式 Type | 高效满液式换热器 Flooded high efficiency heat exchanger | | 水流量(m3/h) Flow | 57.6 | 61.0 | 66.2 | 72.2 | 79.0 | 94.5 | 99.7 | | 水压降(kPa) Water pressure drop | 45.0 | 45.0 | 48.0 | 52.0 | 53.0 | 56.0 | 58.0 | | 配管管径(mm) Interface size | DN100 | DN125 | DN150 | | 冷凝器Condenser | 型式 Type | 高效壳管式换热器 Pipe high efficiency heat exchanger | | 水流量(m3/h) Flow | 68.2 | 72.2 | 78.4 | 85.6 | 93.9 | 111.8 | 117.9 | | 水压降(kPa) Water pressure drop | 52.0 | 52.0 | 53.0 | 55.0 | 56.0 | 60.0 | 60.0 | | 配管管径(mm) Interface size | DN100 | DN125 | DN150 | | 制冷剂Refrigerant | 类型 Type | R22 | | 充注量(kg) Refrigerant volume | 95.0 | 100.0 | 110.0 | 115.0 | 125.0 | 150.0 | 155.0 | 外形尺寸
Overall dimensions | 长(mm) Length | 3280 | 3280 | 3480 | 3480 | 3510 | 3510 | 3530 | | 宽(mm) Width | 1200 | 1200 | 1200 | 1200 | 1300 | 1400 | 1400 | | 高(mm) Height | 1700 | 1700 | 1730 | 1730 | 1780 | 1780 | 1850 | | 重量 weight | 机组略重(kg) Machine weight | 2250 | 2350 | 2480 | 2850 | 3050 | 3250 | 3450 | | 运行略重(kg) Operating weight | 2500 | 2650 | 2780 | 3150 | 3350 | 3450 | 3650 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| | SWF- | | 机型 Type | 635S | 690S | 715S | 820S | 900S | 950S | 1080S | 名义制冷量
Nominal cooling capacity | kW | 635.0 | 690.0 | 715.0 | 820.0 | 900.0 | 950.0 | 1080.0 | | 104kcal/h | 54.6 | 59.3 | 61.5 | 70.5 | 77.4 | 81.7 | 92.9 | | 运行控制方式 Run control | PLC可编程控制器全自动控制 Use PLC microcomputer control | | 电源 Power Supply | 380V/3N/50HZ | | 启动类型 Startup type | Y-△ | | 压缩机Compressor | 型式 Type | 5:6非对称半封闭双螺杆压缩机 Semi-closed 5:6 asymmetric twin-screw compressor | 输入功率(kW)
Refrigeration input power | 115.0 | 124.0 | 128.0 | 147.5 | 163.5 | 173.5 | 195.0 | | 额定电流(A) Rated Current | 194.0 | 208.5 | 215.0 | 248.0 | 275.0 | 292.0 | 328.0 | | 油加热器(W) Oil heater | 300.0 | | 能量调节 Energy regulation | 0-25%-50%-75%-100% | | 蒸发器Evaporator | 型式 Type | 高效满液式换热器 Flooded high efficiency heat exchanger | | 水流量(m3/h) Flow | 109.1 | 118.6 | 122.9 | 140.9 | 154.6 | 163.2 | 185.6 | | 水压降(kPa) Water pressure drop | 75.0 | 78.0 | 78.0 | 80.0 | 80.0 | 82.0 | 85.0 | | 配管管径(mm) Interface size | DN150 | DN200 | | 冷凝器Condenser | 型式 Type | 高效壳管式换热器 Pipe high efficiency heat exchanger | | 水流量(m3/h) Flow | 128.9 | 139.9 | 144.8 | 166.2 | 182.7 | 193.0 | 219.1 | | 水压降(kPa) Water pressure drop | 78.0 | 80.0 | 80.0 | 82.0 | 85.0 | 85.0 | 85.0 | | 配管管径(mm) Interface size | DN150 | DN200 | | 制冷剂Refrigerant | 类型 Type | R22 | | 充注量(kg) Refrigerant volume | 165.0 | 180.0 | 190.0 | 215.0 | 235.0 | 250.0 | 285.0 | 外形尺寸
Overall dimensions | 长(mm) Length | 3730 | 3730 | 3760 | 3760 | 3790 | 3790 | 3790 | | 宽(mm) Width | 1400 | 1500 | 1500 | 1500 | 1650 | 1650 | 1650 | | 高(mm) Height | 1900 | 1950 | 2000 | 2050 | 2050 | 2150 | 2150 | | 重量 weight | 机组略重(kg) Machine weight | 3550 | 3650 | 3750 | 3850 | 3900 | 4050 | 4100 | | 运行略重(kg) Operating weight | 3800 | 3950 | 3950 | 4050 | 4150 | 4300 | 4350 |
名义工况：冷冻水进／出水温度12℃／7℃；冷却水进／出水温度30℃／35℃。 温度条件：冷冻水出水温度范围5℃～15℃；冷却水进水温度范围19℃～33℃。
满液式螺杆冷水机组技术参数（双压缩机）
| SWF- | | 机型 Type | 670D | 710D | 770D | 840D | 920D | 1100D | 1160D | 名义制冷量
Nominal cooling capacity | kW | 670.0 | 710.0 | 770.0 | 840.0 | 920.0 | 1100.0 | 1160.0 | | 104kcal/h | 57.6 | 61.1 | 66.2 | 72.2 | 79.1 | 94.6 | 99.8 | | 运行控制方式 Run control | PLC可编程控制器全自动控制 Use PLC microcomputer control | | 电源 Power Supply | 380V/3N/50HZ | | 启动类型 Startup type | Y-△ | | 压缩机Compressor | 型式 Type | 5:6非对称半封闭双螺杆压缩机 Semi-closed 5:6 asymmetric twin-screw compressor | 输入功率(kW)
Refrigeration input power | 124.0 | 130.0 | 143.0 | 156.0 | 173.0 | 201.0 | 212.0 | | 额定电流(A) Rated Current | 208.0 | 109.0 | 120.0 | 131.0 | 146.0 | 169.0 | 178.5 | | 油加热器(W) Oil heater | 300.0 | | 能量调节 Energy regulation | 0-12.5%-25%-50%-75%-100% | | 蒸发器Evaporator | 型式 Type | 高效满液式换热器 Flooded high efficiency heat exchanger | | 水流量(m3/h) Flow | 115.1 | 122.0 | 132.3 | 144.3 | 158.1 | 189.0 | 199.3 | | 水压降(kPa) Water pressure drop | 62.0 | 62.0 | 65.0 | 65.0 | 68.0 | 72.0 | 72.0 | | 配管管径(mm) Interface size | DN150 | DN200 | | 冷凝器Condenser | 型式 Type | 高效壳管式换热器 Pipe high efficiency heat exchanger | | 水流量(m3/h) Flow | 136.4 | 144.3 | 156.9 | 171.1 | 187.8 | 223.5 | 235.7 | | 水压降(kPa) Water pressure drop | 55.0 | 55.0 | 58.0 | 58.0 | 60.0 | 65.0 | 65.0 | | 配管管径(mm) Interface size | DN150 | DN200 | DN250 | | 制冷剂Refrigerant | 类型 Type | R22 | | 充注量(kg) Refrigerant volume | 190.0 | 200.0 | 220.0 | 230.0 | 250.0 | 300.0 | 310.0 | 外形尺寸
Overall dimensions | 长(mm) Length | 4190 | 4210 | 4210 | 4440 | 4440 | 4470 | 4470 | | 宽(mm) Width | 1250 | 1400 | 1400 | 1500 | 1500 | 1650 | 1650 | | 高(mm) Height | 1700 | 1700 | 1730 | 1730 | 1780 | 1780 | 1850 | | 重量 weight | 机组略重(kg) Machine weight | 4750 | 4950 | 5200 | 6000 | 6400 | 6850 | 7250 | | 运行略重(kg) Operating weight | 5000 | 5200 | 5450 | 6250 | 6650 | 7100 | 7500 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| | SWF- | | 机型 Type | 1270D | 1380D | 1430D | 1640D | 1800D | 1900D | 2160D | 名义制冷量
Nominal cooling capacity | kW | 1270.0 | 1380.0 | 1430.0 | 1640.0 | 1800.0 | 1900.0 | 2160.0 | | 104kcal/h | 109.2 | 118.7 | 123.0 | 141.0 | 154.8 | 163.4 | 185.8 | | 运行控制方式 Run control | PLC可编程控制器全自动控制 Use PLC microcomputer control | | 电源 Power Supply | 380V/3N/50HZ | | 启动类型 Startup type | Y-△ | | 压缩机Compressor | 型式 Type | 5:6非对称半封闭双螺杆压缩机 Semi-closed 5:6 asymmetric twin-screw compressor | 输入功率(kW)
Refrigeration input power | 230.0 | 248.0 | 256.0 | 295.0 | 327.0 | 347.0 | 390.0 | | 额定电流(A) Rated Current | 388.0 | 417.0 | 430.0 | 496.0 | 550.0 | 584.0 | 656.0 | | 油加热器(W) Oil heater | 300.0 | | 能量调节 Energy regulation | 0-12.5%-25%-50%-75%-100% | | 蒸发器Evaporator | 型式 Type | 高效满液式换热器 Flooded high efficiency heat exchanger | | 水流量(m3/h) Flow | 218.2 | 237.1 | 245.7 | 281.8 | 309.3 | 326.5 | 371.1 | | 水压降(kPa) Water pressure drop | 75.0 | 78.0 | 78.0 | 80.0 | 80.0 | 82.0 | 85.0 | | 配管管径(mm) Interface size | DN200 | DN250 | DN300 | | 冷凝器Condenser | 型式 Type | 高效壳管式换热器 Pipe high efficiency heat exchanger | | 水流量(m3/h) Flow | 257.7 | 279.7 | 289.7 | 332.5 | 365.5 | 386.1 | 438.1 | | 水压降(kPa) Water pressure drop | 78.0 | 80.0 | 80.0 | 82.0 | 85.0 | 85.0 | 85.0 | | 配管管径(mm) Interface size | DN250 | DN300 | | 制冷剂Refrigerant | 类型 Type | R22 | | 充注量(kg) Refrigerant volume | 330.0 | 360.0 | 380.0 | 430.0 | 470.0 | 500.0 | 570.0 | 外形尺寸
Overall dimensions | 长(mm) Length | 4690 | 4690 | 4750 | 4750 | 4850 | 4850 | 4850 | | 宽(mm) Width | 1750 | 1800 | 1800 | 1850 | 1850 | 1900 | 1900 | | 高(mm) Height | 2050 | 2100 | 2100 | 2150 | 2150 | 2250 | 2350 | | 重量 weight | 机组略重(kg) Machine weight | 7800 | 8050 | 8250 | 8500 | 8600 | 8950 | 9050 | | 运行略重(kg) Operating weight | 8100 | 8350 | 8550 | 8800 | 8900 | 9250 | 9350 |
名义工况：冷冻水进／出水温度12℃／7℃；冷却水进／出水温度30℃／35℃。 温度条件：冷冻水出水温度范围5℃～15℃；冷却水进水温度范围19℃～33℃。
满液式螺杆冷水机组技术参数（单压缩机）-5℃ | SWF- | | 机型 Type | 220SX | 230SX | 245SX | 270SX | 300SX | 350SX | 370SX | 名义制冷量
Nominal cooling capacity | kW | 220.0 | 230.0 | 245.0 | 270.0 | 300.0 | 350.0 | 370.0 | | 104kcal/h | 18.9 | 19.8 | 21.1 | 23.2 | 25.8 | 30.1 | 31.8 | | 运行控制方式 Run control | PLC可编程控制器全自动控制 Use PLC microcomputer control | | 电源 Power Supply | 380V/3N/50HZ | | 启动类型 Startup type | Y-△ | | 压缩机Compressor | 型式 Type | 5:6非对称半封闭双螺杆压缩机 Semi-closed 5:6 asymmetric twin-screw compressor | 输入功率(kW)
Refrigeration input power | 55.5 | 58.5 | 64.5 | 70.0 | 78.0 | 91.0 | 96.0 | | 额定电流(A) Rated Current | 93.5 | 98.5 | 108.0 | 118.0 | 131.0 | 153.0 | 161.0 | | 油加热器(W) Oil heater | 300.0 | | 能量调节 Energy regulation | 0-25%-50%-75%-100% | | 蒸发器Evaporator | 型式 Type | 高效满液式换热器 Flooded high efficiency heat exchanger | | 水流量(m3/h) Flow | 51.8 | 54.1 | 57.6 | 63.5 | 70.6 | 82.4 | 87.1 | | 水压降(kPa) Water pressure drop | 45.0 | 45.0 | 48.0 | 52.0 | 53.0 | 56.0 | 58.0 | | 配管管径(mm) Interface size | DN100 | DN125 | DN150 | | 冷凝器Condenser | 型式 Type | 高效壳管式换热器 Pipe high efficiency heat exchanger | | 水流量(m3/h) Flow | 61.3 | 64.2 | 68.7 | 75.6 | 84.0 | 98.0 | 103.6 | | 水压降(kPa) Water pressure drop | 52.0 | 52.0 | 53.0 | 55.0 | 56.0 | 60.0 | 60.0 | | 配管管径(mm) Interface size | DN100 | DN125 | DN150 | | 制冷剂Refrigerant | 类型 Type | R22 | | 充注量(kg) Refrigerant volume | 100.0 | 105.0 | 115.0 | 120.0 | 130.0 | 160.0 | 165.0 | 外形尺寸
Overall dimensions | 长(mm) Length | 3280 | 3280 | 3480 | 3480 | 3510 | 3510 | 3530 | | 宽(mm) Width | 1200 | 1200 | 1200 | 1200 | 1300 | 1400 | 1400 | | 高(mm) Height | 1700 | 1700 | 1730 | 1730 | 1780 | 1780 | 1850 | | 重量 weight | 机组略重(kg) Machine weight | 2350 | 2450 | 2600 | 3000 | 3200 | 3400 | 3650 | | 运行略重(kg) Operating weight | 2650 | 2750 | 2900 | 3300 | 3500 | 3600 | 3850 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| | SWF- | | 机型 Type | 405SX | 440SX | 455SX | 530SX | 585SX | 625SX | 700SX | 名义制冷量
Nominal cooling capacity | kW | 405.0 | 440.0 | 455.0 | 530.0 | 585.0 | 625.0 | 700.0 | | 104kcal/h | 34.8 | 37.8 | 39.1 | 45.6 | 50.3 | 53.8 | 60.2 | | 运行控制方式 Run control | PLC可编程控制器全自动控制 Use PLC microcomputer control | | 电源 Power Supply | 380V/3N/50HZ | | 启动类型 Startup type | Y-△ | | 压缩机Compressor | 型式 Type | 5:6非对称半封闭双螺杆压缩机 Semi-closed 5:6 asymmetric twin-screw compressor | 输入功率(kW)
Refrigeration input power | 104.0 | 112.0 | 115.0 | 133.0 | 147.5 | 156.5 | 176.0 | | 额定电流(A) Rated Current | 174.5 | 188.0 | 194.0 | 223.0 | 248.0 | 263.0 | 296.0 | | 油加热器(W) Oil heater | 300.0 | | 能量调节 Energy regulation | 0-25%-50%-75%-100% | | 蒸发器Evaporator | 型式 Type | 高效满液式换热器 Flooded high efficiency heat exchanger | | 水流量(m3/h) Flow | 95.3 | 103.5 | 107.1 | 124.7 | 137.6 | 147.1 | 164.7 | | 水压降(kPa) Water pressure drop | 75.0 | 78.0 | 78.0 | 80.0 | 80.0 | 82.0 | 85.0 | | 配管管径(mm) Interface size | DN150 | DN200 | | 冷凝器Condenser | 型式 Type | 高效壳管式换热器 Pipe high efficiency heat exchanger | | 水流量(m3/h) Flow | 113.2 | 122.8 | 126.8 | 147.6 | 163.0 | 173.9 | 194.9 | | 水压降(kPa) Water pressure drop | 78.0 | 80.0 | 80.0 | 82.0 | 85.0 | 85.0 | 85.0 | | 配管管径(mm) Interface size | DN150 | DN200 | | 制冷剂Refrigerant | 类型 Type | R22 | | 充注量(kg) Refrigerant volume | 175.0 | 190.0 | 200.0 | 225.0 | 250.0 | 265.0 | 300.0 | 外形尺寸
Overall dimensions | 长(mm) Length | 3730 | 3730 | 3760 | 3760 | 3790 | 3790 | 3790 | | 宽(mm) Width | 1400 | 1500 | 1500 | 1500 | 1650 | 1650 | 1650 | | 高(mm) Height | 1900 | 1950 | 2000 | 2050 | 2050 | 2150 | 2150 | | 重量 weight | 机组略重(kg) Machine weight | 3750 | 3850 | 3950 | 4050 | 4100 | 4250 | 4350 | | 运行略重(kg) Operating weight | 3950 | 4150 | 4250 | 4300 | 4350 | 4500 | 4550 |
名义工况：冷冻水进／出水温度0℃／-5℃；冷却水进／出水温度30℃／35℃。 温度条件：冷冻水出水温度范围-7℃～5℃；冷却水进水温度范围19℃～33℃。 机组冷冻侧采用25%乙二醇或20%氯化钙防冻液。名义工况：冷冻水进／出水温度0℃／-5℃；冷却水进／出水温度30℃／35℃。 温度条件：冷冻水出水温度范围-7℃～5℃；冷却水进水温度范围19℃～33℃。 机组冷冻侧采用25%乙二醇或20%氯化钙防冻液。
满液式螺杆冷水机组技术参数（双压缩机）-5℃ | SWF- | | 机型 Type | 220SX | 230SX | 245SX | 270SX | 300SX | 350SX | 370SX | 名义制冷量
Nominal cooling capacity | kW | 220.0 | 230.0 | 245.0 | 270.0 | 300.0 | 350.0 | 370.0 | | 104kcal/h | 18.9 | 19.8 | 21.1 | 23.2 | 25.8 | 30.1 | 31.8 | | 运行控制方式 Run control | PLC可编程控制器全自动控制 Use PLC microcomputer control | | 电源 Power Supply | 380V/3N/50HZ | | 启动类型 Startup type | Y-△ | | 压缩机Compressor | 型式 Type | 5:6非对称半封闭双螺杆压缩机 Semi-closed 5:6 asymmetric twin-screw compressor | 输入功率(kW)
Refrigeration input power | 55.5 | 58.5 | 64.5 | 70.0 | 78.0 | 91.0 | 96.0 | | 额定电流(A) Rated Current | 93.5 | 98.5 | 108.0 | 118.0 | 131.0 | 153.0 | 161.0 | | 油加热器(W) Oil heater | 300.0 | | 能量调节 Energy regulation | 0-25%-50%-75%-100% | | 蒸发器Evaporator | 型式 Type | 高效满液式换热器 Flooded high efficiency heat exchanger | | 水流量(m3/h) Flow | 51.8 | 54.1 | 57.6 | 63.5 | 70.6 | 82.4 | 87.1 | | 水压降(kPa) Water pressure drop | 45.0 | 45.0 | 48.0 | 52.0 | 53.0 | 56.0 | 58.0 | | 配管管径(mm) Interface size | DN100 | DN125 | DN150 | | 冷凝器Condenser | 型式 Type | 高效壳管式换热器 Pipe high efficiency heat exchanger | | 水流量(m3/h) Flow | 61.3 | 64.2 | 68.7 | 75.6 | 84.0 | 98.0 | 103.6 | | 水压降(kPa) Water pressure drop | 52.0 | 52.0 | 53.0 | 55.0 | 56.0 | 60.0 | 60.0 | | 配管管径(mm) Interface size | DN100 | DN125 | DN150 | | 制冷剂Refrigerant | 类型 Type | R22 | | 充注量(kg) Refrigerant volume | 100.0 | 105.0 | 115.0 | 120.0 | 130.0 | 160.0 | 165.0 | 外形尺寸
Overall dimensions | 长(mm) Length | 3280 | 3280 | 3480 | 3480 | 3510 | 3510 | 3530 | | 宽(mm) Width | 1200 | 1200 | 1200 | 1200 | 1300 | 1400 | 1400 | | 高(mm) Height | 1700 | 1700 | 1730 | 1730 | 1780 | 1780 | 1850 | | 重量 weight | 机组略重(kg) Machine weight | 2350 | 2450 | 2600 | 3000 | 3200 | 3400 | 3650 | | 运行略重(kg) Operating weight | 2650 | 2750 | 2900 | 3300 | 3500 | 3600 | 3850 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| | SWF- | | 机型 Type | 405SX | 440SX | 455SX | 530SX | 585SX | 625SX | 700SX | 名义制冷量
Nominal cooling capacity | kW | 405.0 | 440.0 | 455.0 | 530.0 | 585.0 | 625.0 | 700.0 | | 104kcal/h | 34.8 | 37.8 | 39.1 | 45.6 | 50.3 | 53.8 | 60.2 | | 运行控制方式 Run control | PLC可编程控制器全自动控制 Use PLC microcomputer control | | 电源 Power Supply | 380V/3N/50HZ | | 启动类型 Startup type | Y-△ | | 压缩机Compressor | 型式 Type | 5:6非对称半封闭双螺杆压缩机 Semi-closed 5:6 asymmetric twin-screw compressor | 输入功率(kW)
Refrigeration input power | 104.0 | 112.0 | 115.0 | 133.0 | 147.5 | 156.5 | 176.0 | | 额定电流(A) Rated Current | 174.5 | 188.0 | 194.0 | 223.0 | 248.0 | 263.0 | 296.0 | | 油加热器(W) Oil heater | 300.0 | | 能量调节 Energy regulation | 0-25%-50%-75%-100% | | 蒸发器Evaporator | 型式 Type | 高效满液式换热器 Flooded high efficiency heat exchanger | | 水流量(m3/h) Flow | 95.3 | 103.5 | 107.1 | 124.7 | 137.6 | 147.1 | 164.7 | | 水压降(kPa) Water pressure drop | 75.0 | 78.0 | 78.0 | 80.0 | 80.0 | 82.0 | 85.0 | | 配管管径(mm) Interface size | DN150 | DN200 | | 冷凝器Condenser | 型式 Type | 高效壳管式换热器 Pipe high efficiency heat exchanger | | 水流量(m3/h) Flow | 113.2 | 122.8 | 126.8 | 147.6 | 163.0 | 173.9 | 194.9 | | 水压降(kPa) Water pressure drop | 78.0 | 80.0 | 80.0 | 82.0 | 85.0 | 85.0 | 85.0 | | 配管管径(mm) Interface size | DN150 | DN200 | | 制冷剂Refrigerant | 类型 Type | R22 | | 充注量(kg) Refrigerant volume | 175.0 | 190.0 | 200.0 | 225.0 | 250.0 | 265.0 | 300.0 | 外形尺寸
Overall dimensions | 长(mm) Length | 3730 | 3730 | 3760 | 3760 | 3790 | 3790 | 3790 | | 宽(mm) Width | 1400 | 1500 | 1500 | 1500 | 1650 | 1650 | 1650 | | 高(mm) Height | 1900 | 1950 | 2000 | 2050 | 2050 | 2150 | 2150 | | 重量 weight | 机组略重(kg) Machine weight | 3750 | 3850 | 3950 | 4050 | 4100 | 4250 | 4350 | | 运行略重(kg) Operating weight | 3950 | 4150 | 4250 | 4300 | 4350 | 4500 | 4550 |
名义工况：冷冻水进／出水温度0℃／-5℃；冷却水进／出水温度30℃／35℃。 温度条件：冷冻水出水温度范围-7℃～5℃；冷却水进水温度范围19℃～33℃。 机组冷冻侧采用25%乙二醇或20%氯化钙防冻液。
|
